YOUR ARCHITECTURAL
SHADE RESOURCE



Find the right fabrics and hardware for any shade application, as well as maintenance education and product specs. With premier access to products from 12 regional distribution centers and a nationwide network of fabricators, trust Trivantage to get what you need to bring your design to life.



Course Name: “From Imagination to Reality: Bringing Shade Structures to Life in the Built Environment”

Course Number: SHADESOURCE2

Course Summary: Throughout history, people have sought protection from the sun. Shade structures take many forms, but all have the ability to transform overly sunny spaces into comfortable places where we can live, work and play. This course provides an overview of shade structure types, materials and fabrication techniques. It illustrates how creatively designed shade can improve the energy efficiency of buildings, protecting people from harmful UV rays—and create a sense of place for schools, retailers and communities.

Credits: 1 LU/HSW



SERGE FERRARI SOLTIS® HORIZON 86


Soltis Horizon 86 is a vinyl-coated polyester screen mesh used for solar protection. It blocks up to 88% of the sun’s radiation while still transmitting up to 28% natural light. The mesh fabric is dimensionally stable and mildew resistant.



APPLICATIONS  SCREENS, AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CSFM TITLE 19, NFPA 701 TM1, ASTM E84
WEIGHT  11.00
WIDTH  69, 105
# OF COLORS  23
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  5 YEAR



SERGE FERRARI SOLTIS PERFORM 92



Used for solar protection, Soltis Perform 92 is a vinyl-coated polyester screen mesh. It blocks up to 97% of the sun’s heat while maintaining outward visibility in window screen applications. The mesh fabric keeps its shape and defends against mildew.



APPLICATIONS  SCREENS, AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CSFM TITLE 19, NFPA 701 TM1, ASTM E84
WEIGHT  12.00
WIDTH  69, 105
# OF COLORS  48
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  5 YEAR



SUNTEX® 90



Phifer® SunTex 90 is a sleek outdoor mesh fabric that blocks up to 90% of the sun’s hot rays. With a 10% open weave, it acts as a breathable privacy screen with decent outward visibility while still blocking UV light and insects.



APPLICATIONS  SCREENS, AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CALIFORNIA TECHNICAL BULLETON 117, SEC. E (CS-191-53); IBC SEC. 903.1 CLASS A
WEIGHT  17.20
WIDTH  48, 72, 96, 120
# OF COLORS  5
WARRANTY  10 YEAR


DICKSON® SUNWORKER


A true natural air conditioner, Sunworker offers an effective way of meeting the objectives laid down by the EPBD (The Energy Performance of Buildings Directive). Its energy efficiency makes it a perfectly adapted fabric for the tertiary and residential sectors.



APPLICATIONS  SCREENS, AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CSFM TITLE 19, NFPA 701 TM1, ASTM E84;
M1; B1; C1
WEIGHT  9.75
WIDTH  118
# OF COLORS  20
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  5 YEAR



SUNBRELLA®



A high-performance, easy-to-clean fabric that ensures durability with function and style. Sunbrella acrylic is known for its lasting colorfastness.





APPLICATIONS  AWNINGS
FR SPECIFICATIONS  CALIFORNIA TECHNICAL BULLETIN 117-2013 CLASS 1
WEIGHT  9.00
WIDTH  46, 60, 80
# OF COLORS  100+
PRINTABLE/GRAPHIC RECEPTIVE  SGS, Screenprint, Paint
WARRANTY  10 YEAR



FIRESIST®



Specifically designed for the commercial awning, canopy, and shade markets, FIRESIST delivers a state-of-the-art combination of flame retardant performance and UV resistance.




APPLICATIONS  AWNINGS
FR SPECIFICATIONS  CSFM TITLE 19, NFPA TEST METHOD 2, CPAI-84, FMVSS 302, ASTM E84
WEIGHT  8.75
WIDTH  60
# OF COLORS  18
PRINTABLE/GRAPHIC RECEPTIVE  SGS, Screenprint, Paint
WARRANTY  5 YEAR


SUNBRELLA SEAMARK®


The same features that make SeaMark great for marine applications also make it excellent for awnings. The exterior-grade, waterproof fabric is made by combining Sunbrella acrylic with a textured vinyl.



APPLICATIONS  AWNINGS
FR SPECIFICATIONS
WEIGHT  16.00
WIDTH  60
# OF COLORS  18
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  5 YEAR



DICKSON® LAC 650 SL



Dickson LAC 650 SL fabrics are made from PVC-coated polyester and are protected by an anti-wicking system, which blocks moisture penetration. Designed for applications where a stronger, heavier waterproof fabric is desired.



APPLICATIONS  AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CSFM TITLE 19, NFPA TEST METHOD 2, M2
WEIGHT  20.00
WIDTH  58.5
# OF COLORS  15
PRINTABLE/GRAPHIC RECEPTIVE  PS GRAPHICS; SOLVENT, ECO SOLVENT, UV, AND LATEX
WARRANTY  5 YEAR

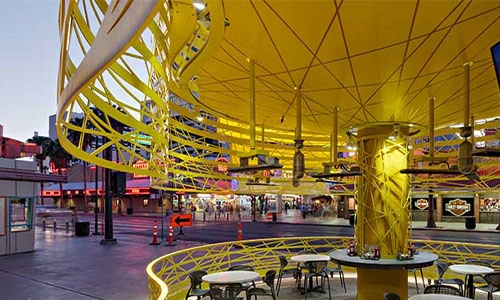

SERGE FERRARI SOLTIS PROOF 502



Soltis Proof 502 is a high-performing awning fabric that brings long-term durability, UV resistance, weather protection, and color retention. It features a smooth, satin finish and a PVDF coat on both sides for easy maintenance.



APPLICATIONS  AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CSFM TITLE 19, NFPA 701 TM1, ASTM E84
WEIGHT  16.70
WIDTH  70.9
# OF COLORS  40
PRINTABLE/GRAPHIC RECEPTIVE  LATEX
WARRANTY  10 YEAR


SERGE FERRARI SOLTIS PROOF VIVO™


Soltis Proof Vivo is a high-strength, printable fabric that features a natural fiber woven design. Made of flexible polyester with a waterproof matte finish, the fabric is UV and mold resistant.



APPLICATIONS  AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CSFM TITLE 19, NFPA 701 TM1, ASTM E84
WEIGHT  14.70
WIDTH  67
# OF COLORS  14
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  8 YEAR



HERCULITE® NATURA®



Natura is an excellent choice for commercial awnings, especially in the restaurant industry. The fabric is waterproof, mildew resistant, weather-tight, and flame resistant, making it a highly functional outdoor fabric.


APPLICATIONS  AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CSFM TITLE 19, NFPA 701 TM1, ASTM E84
WEIGHT  18.00
WIDTH  60
# OF COLORS  10
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  8 YEAR



WEBLON® COASTLINE PLUS®



Weblon Coastline Plus fabric features a strong polyester base fabric that resists wicking. The Rain Kleen® finish provides color retention, cleanability, and a prolonged service life. The fire-retardant fabric is UV, waterproof, and mildew resistant.



APPLICATIONS  AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CSFM TITLE 19, NFPA 701 TM1, ASTM E84
WEIGHT  15.00
WIDTH  62
# OF COLORS  49
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  5 YEAR



NITE-LITE®


Nite-Lite is an exceptional back-lit fabric. This durable waterproof fabric accepts pressure sensitive graphics as well as sewn-in and heat sealed inset fabrics, silk-screening, and hand painting.



APPLICATIONS  AWNINGS
FR SPECIFICATIONS  CSFM TITLE 19; NFPA 701 TM2
WEIGHT  16.00
WIDTH  61
# OF COLORS  11
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  8 YEAR



SOLAMESH®



SolaMesh is an industry-leading performance fabric, best used for custom shade sails, awnings, and other canopy structures. Made from durable HDPE fabric, it is stable, flexible, colorfast, and easy to clean.



APPLICATIONS  AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  ASTM E84
WEIGHT  9.50
WIDTH  118
# OF COLORS  19
WARRANTY  10 YEAR



ARCHITEC 400®



Architec 400 is an extremely strong UV stabilized knitted shadecloth that has been designed for large commercial tension membrane structures and shade sails.



APPLICATIONS  AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  ASTM E84
WEIGHT  12.00
WIDTH  150
# OF COLORS  12
WARRANTY  12 YEAR


SUNBRELLA CONTOUR


The innovative, patent-pending structure of this fabric makes it ideal for windscreens, shade sails, cabanas, and other shade structures.



APPLICATIONS  AWNINGS, SHADE SAIL AND TENSILE STRUCTURES
FR SPECIFICATIONS  CALIFORNIA TECHNICAL BULLETIN 117-2013 CLASS 1
WEIGHT  11.50
WIDTH  120
# OF COLORS  15
PRINTABLE/GRAPHIC RECEPTIVE
WARRANTY  10 YEAR
