RF welding, also known as Radio Frequency welding or High-Frequency welding, was introduced as a commercial permanent material bonding technology in the early 1940s. Over 80 years later, though still ideal for large or high volume projects, new methods for repairs, small projects, and rafter band applications are hitting the market.
How does RF Welding work?
RF welding involves the use of electromagnetic energy in the radio frequency range - usually 13.56 MHz, 27.12 MHz, or 40.68 MHz - to generate heat and create a bond between materials.
- Materials being welded are placed between two electrodes.
- These materials must be dielectric (non-conductive) and are typically thermoplastic. Thermoplastic fabrics are made from synthetic polymers like PET, PVC, or nylon that react on a molecular level when heat is applied.
- RF energy is applied through the electrodes.
- This RF energy causes the molecules in the thermoplastic materials to oscillate, generating heat due to molecular friction. The heat generated causes the thermoplastic materials to soften and melt where they are in contact.
- Pressure is also applied to ensure a strong bond as the materials melt together.
- Once the materials have melted sufficiently and pressure has been applied for the required amount of time, the RF energy is turned off.
- Materials begin to cool and solidify, forming a strong weld. The bonded materials can be removed from the electrodes once they are cool enough to handle.
Pros & Cons of RF Welding
Like any manufacturing process, RF welding has its advantages, disadvantages, and certain applications that are more ideal than others for this technology:
PRO: Strong Airtight & Watertight Bonds
RF welding creates strong, uniform bonds that are often as strong as the original material, providing excellent durability and reliability. The method is also best for creating airtight and watertight seals required for applications like inflatable products, medical bags, waterproof clothing, or food packaging.
CON: Material Limitations
Not all materials are suitable for RF welding. Fabrics and materials made from polyethylene and polypropylene are more challenging to weld with RF. Canvas fabrics and certain coated fabrics cannot be bonded with RF welding without additional adhesives or tapes and are often unreliable for outdoor applications.
PRO: Precision Control & Speed
The process allows for precise control over the welding parameters, such as temperature, pressure, and time, resulting in consistent and high-quality welds. RF welding is also a relatively quick process, making it ideal for high-volume production environments.
CON: Equipment Cost & Maintenance
RF welding equipment can be expensive, with high initial investment costs for the machinery and tooling. The equipment also requires regular maintenance and calibration to ensure consistent performance and to avoid issues such as arcing and breakdowns.

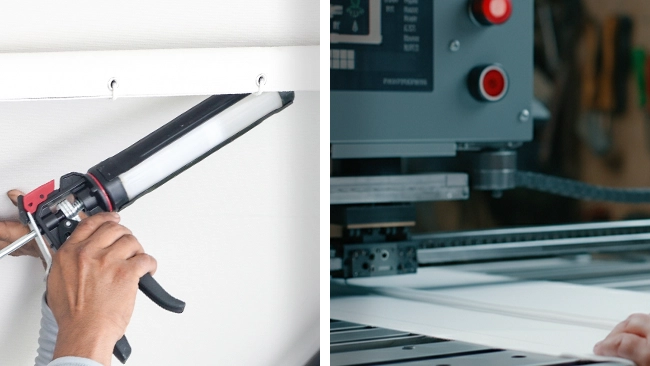

New Alternatives to RF Welding
If you are searching for a fabric bonding method comparable to the strength of RF welding without the hefty investment and large machinery, look no further than Fast Fabric Adhesives exclusively available at Trivantage®.
This collection of new products allows for on-site repairs, rafter band installation, canopy reinforcements, and so much more. Compared to traditional methods, these products significantly reduce the time, money, and muscle required to complete the job and come in two formulations:
Liquid RF Vinyl Weld
- Designed for use on laminated vinyl awning materials like Weblon® Coastline Plus® & Patio 500®.
- Provides a bond as strong as sewing or welding without the need for machinery or back and forth transportation from workshop to installation site.
- Sold in squeeze bottles and cartridges with dispensing nozzles engineered specifically for these products and applicators.
Canvas Epoxy
- Engineered specifically for bonding woven canvas fabrics like Sunbrella® Awning Fabric & Dickson® North American Collection.
- Features a quick cure time, portability for easy repairs & reinforcements while on-site, plus a strong canvas-on-canvas bond difficult to achieve with RF welding.
- Sold in cartridges for precise application plus mixing nozzles and applicators specifically designed for this innovative bonding product.
